10 Vial Plastic package Tray

Pet clear glass vial tray
Mold type: Gypsum Mold ,Copper Mold, Aluminum Mold
We are offering Glass Vial Tray. The Ampoule Trays is reliant on Just In Time Procurement for its packaging needs. We cater to the pharma industry in ampoule trays of different sizes (the entire range) in whatever material required.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service
Full Customization

Description

Vial Tray+ Laser Printed Box

Complete 10ml Glass Vial Packaging System

PVC · APET · PETG tray · Laser print box · Custom design · Small quantity OK

10ml Vial Plastic Package Tray

Complete Packaging System

Laser Printed Vial Box

10ml

Vial standard

PVC/APET/PETG

Tray material

Laser print

Box printing

10ml Vial Plastic Package Tray

A thermoformed plastic insert tray for 10ml glass vials - holding each vial in its own individual cavity with a controlled ±0.25mm clearance gap per side. Available in PVC, APET (recyclable), and PETG (cold chain to −80°C).

Tray dimensions derived from vial + box

The tray outer dimensions are specified to the box interior with ±0.3mm clearance per side. The cavity diameter is the vial OD + 0.5mm (±0.25mm per side). Both are calculated from the target vial and box dimensions - specify your vial OD and box inner dimensions at order, or supply a vial sample.

vial tray material options

PVC

White PVC

Standard · stock

Default specification. Bright white. −20°C to +40°C. Lowest cost. Available from stock.

APET

White APET

Recyclable · EU

PET #1 recyclable. Same white appearance as PVC. EU sustainability preferred.

PETG

White PETG

−80°C · cold chain

Cold chain rated to −80°C. Impact-resistant at dry-ice temperatures. EO compatible.

HIPS

White HIPS

Stiffest · premium

Highest-gloss white surface. Maximum stiffness. Premium cosmetic presentations.

Laser Printed Vial Box · Glass Vial

A pharmaceutical-grade cardboard outer carton for 10ml glass vials - produced with laser printing technology for exceptional text sharpness, consistent colour, and precise registration on every run, from small to large quantities.

Why laser printing for vial boxes

Laser printing produces sharper minimum font sizes (down to 4pt, critical for pharmaceutical compliance text), more consistent barcode print quality (PCS > 80%), and lower setup costs for short runs compared to traditional offset printing. This makes laser-printed vial boxes ideal for small-to-medium batch pharmaceutical and peptide production where frequent design updates are needed.

Minimum font 4pt - regulatory compliance text legibility

Barcode PCS > 80% - reliable scanner read rate

Low minimum quantity - small batch production friendly

Fast turnaround - no printing plate setup required

Precision plastic tray - six engineering features

The 10ml vial plastic package tray provides structural protection, vial separation, and a clean presentation surface for the pharmaceutical product inside the box.

±0.25mm

Controlled cavity clearance

Per side · shock absorption · glass protection

Each cavity is formed to the vial OD + 0.5mm - providing exactly 0.25mm of clearance per side between the vial wall and the cavity wall. This controlled gap is the critical engineering specification of the tray: enough to allow the vial to slide into the cavity easily, but tight enough to prevent the vial from moving during distribution vibration. The gap acts as a controlled shock absorber, preventing the glass from contacting hard surfaces.

✓+0.25mm per side - controlled, not loose

✓Prevents vial movement in transit

✓Acts as radial shock absorber

≥ 3mm

Inter-cavity wall thickness

Glass-to-glass isolation · no contact

The minimum material thickness between adjacent vial cavities is ≥ 3.0mm - ensuring that even if two adjacent vials were to shift simultaneously toward each other, they cannot make glass-to-glass contact through the tray wall. Glass-to-glass contact during transit vibration is the primary cause of micro-fractures and chipping in pharmaceutical vial packaging. The inter-cavity wall eliminates this failure mode entirely.

✓≥ 3.0mm between cavities

✓Zero glass-to-glass contact possible

✓Eliminates micro-fracture failure mode

White ★

Super white tray surface

Maximum contrast · clinical presentation

The white tray provides the highest possible visual contrast against the gold aluminium crimp cap and printed vial label - turning the opened package into a designed product experience. The white surface makes the vial label text easy to read, the gold cap clearly visible, and the product presentation clean and clinical. Available in custom colours (ice blue, mint, cobalt, blush) to match the outer box colour scheme.

✓Maximum contrast with gold crimp cap

✓Clinical white - pharmaceutical standard

✓Custom colours available

1/2/5/10

Cavity count options

1 · 2 · 5 · 10 · custom count

Standard cavity configurations are 1, 2, 5, and 10 - matching the most common vial-per-pack presentations in the pharmaceutical and peptide market. Custom cavity counts are available to match any specific dose presentation, kit assembly, or product format. The cavity layout (row arrangement, column count) is also customisable to match the aspect ratio of the outer box.

✓1 / 2 / 5 / 10 cavity standard options

✓Custom count and layout available

✓Match any pack presentation format

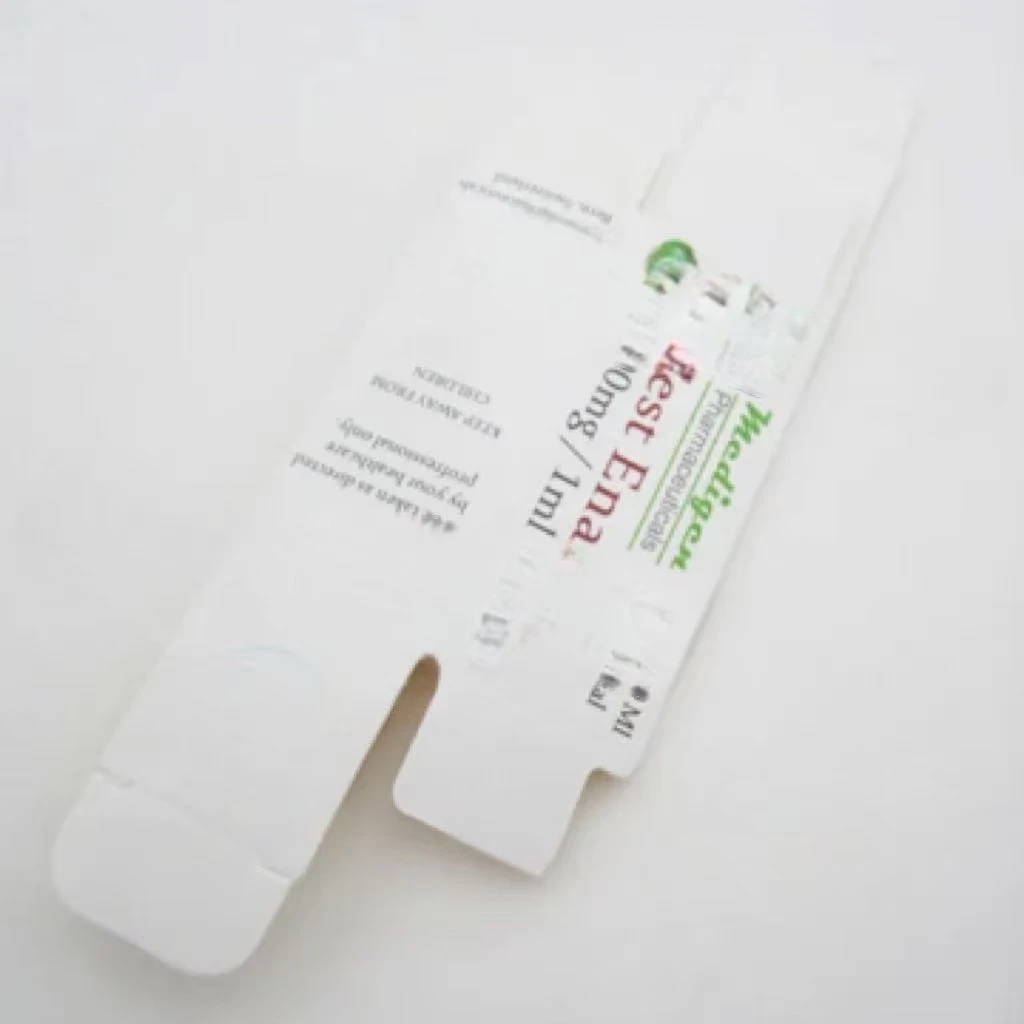

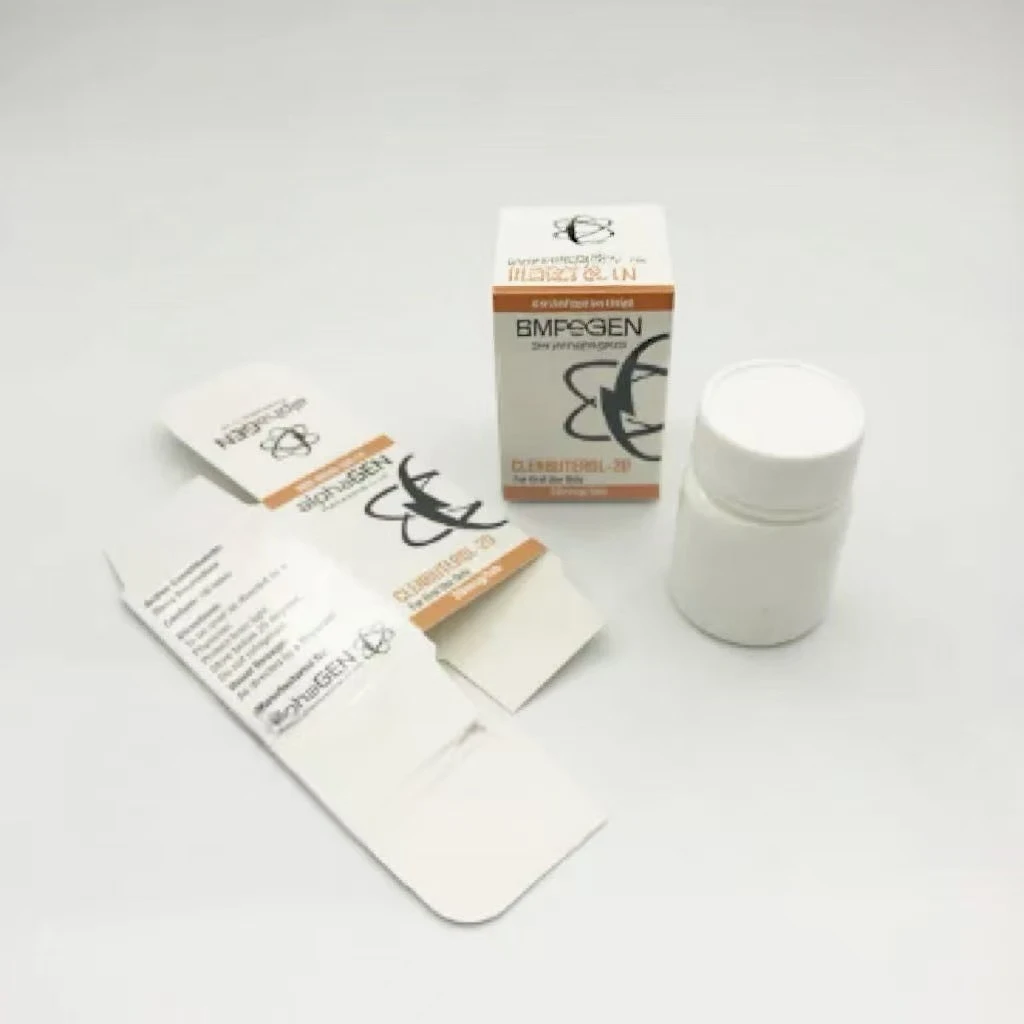

Laser printed vial box - glass vial

Laser printed cardboard box - six print advantages

The laser printed vial box provides the pharmaceutical outer carton - precision-printed with all required product information, brand identity, and compliance text, sized to hold the plastic vial tray and vials as a matched system.

SHARP

Laser-sharp text at minimum size

4pt minimum · regulatory compliance

Laser printing produces text edges with ≤ 50μm definition - meaning even 4pt font sizes (the minimum required for regulatory compliance information in most pharmaceutical markets) are completely legible on the final box. Traditional inkjet or pad printing at small font sizes produces bleed and edge roughness that makes small text illegible. Laser printing is the only process that reliably meets sub-6pt pharmaceutical text requirements.

✓4pt minimum text - fully legible

✓≤ 50μm text edge definition

✓Meets pharmaceutical text size requirements

BARCODE

High-contrast barcode print

PCS > 80% · GS1 · datamatrix

Laser-printed barcodes achieve a Print Contrast Score (PCS) consistently above 80% - the minimum threshold for reliable scanning on pharmaceutical fill-and-finish lines. This is critical for GS1 datamatrix serialisation codes, linear barcodes, and 2D QR verification codes. Laser printing achieves this by producing near-ideal black/white contrast ratios without ink spread or substrate absorption variation.

✓PCS > 80% - fill-and-finish line ready

✓GS1 datamatrix, EAN, linear, QR

✓No ink spread - clean bar edges

SMALL QTY

No plate setup - small quantities

Low MOQ · design change fast

Laser printing requires no printing plates, screens, or press setup - the digital file goes directly to print. This means minimum quantities are as low as 50–100 boxes per design, and design changes (product name update, lot number field change, regulatory text revision) are implemented at zero cost with same-day turnaround. Ideal for peptide labs and pharmaceutical producers with frequent product updates or small batch fill volumes.

✓No plate setup - direct digital to print

✓Minimum 50–100 boxes per design

✓Design changes: same-day, zero cost

CUSTOM

Full custom design

Brand · product name · all fields

Complete custom design for all box panels - front, back, sides, and top flap. Brand name and logo, product name and concentration, compliance text blocks (lot, expiry, storage, manufacturer, warnings), barcode placement, and any decorative elements. Available in full CMYK colour or monochrome. Design proof supplied for approval before print run. Physical sample available before committing to full quantity.

✓All panels - front, back, sides, top

✓Full CMYK colour or monochrome

✓Design proof + sample before production

FIT

Box dimensioned to tray

System specification · no-rattle fit

The box inner dimensions are specified from the tray outer dimensions + 0.6mm (0.3mm per side). This means the box and tray are designed as a matched system - the tray cannot shift inside the box during transit. When ordering tray and box together, both are specified from the same vial OD and pack presentation, eliminating the dimensional incompatibility risk that arises when sourcing tray and box from different suppliers independently.

✓Box inner = tray OD + 0.6mm

✓Specified together - dimensional match guaranteed

✓±0.2mm die-cut - auto-cartoning compatible

Who orders this system

Vial tray + laser box - across the supply chain

The 10ml vial plastic tray and laser printed vial box system is ordered wherever 10ml glass vials require professional secondary packaging - from small peptide labs to large pharmaceutical CDMOs.

Peptide manufacturers

Injectable · GLP-1 · GH · research

Peptide producers filling 10ml glass vials requiring matched tray and laser-printed box sets - where small batch sizes make laser printing's low minimum quantities advantageous and the PETG tray option covers cold-chain lyophilised peptide requirements.

Compounding pharmacies

Custom Rx · small batch · branded

Compounding pharmacies preparing small batches of custom injectable preparations - needing tray + box packaging in quantities matched to fill volume (50–500 units), where laser printing's no-plate setup enables cost-effective production of brand-compliant pharmaceutical boxes.

Aesthetic clinics

Premium · clinic brand · injectable

Aesthetic medicine clinics dispensing injectable products under their own brand - using the laser-printed box with custom clinic branding and the white plastic tray as an insert for a premium open-box presentation at the patient consultation point.

CDMOs & fill-finish

Multi-client · auto-line · GMP

Contract fill-finish organisations handling multiple client brands on shared lines - ordering matched tray and laser-printed box sets per client product, with guaranteed auto-line tolerance (±0.2mm box, ±0.3mm tray-to-box) across the full client portfolio

Biotech & Clinical supply

IMP · Phase I–III · trial supply

Biotech clinical supply teams packaging investigational medicinal products in 10ml glass vials - where the laser-printed box provides the regulatory-compliant outer carton and the PETG tray provides cold-chain protection for frozen investigational products.

Packaging distributors

B2B · turnkey · full set

Pharmaceutical packaging distributors offering tray + laser-printed box as part of a complete injection packaging programme - alongside vial labels, hologram seals, and 10ml glass vial sets - for small and medium pharmaceutical producers who need a single-supplier secondary packaging solution.

Why order tray and box together

Ordering tray and box from the same supplier means both are specified from the same vial OD input - the tray cavity and the box inner dimensions are derived from the same number, guaranteeing the ±0.3mm tray-to-box clearance without the dimensional mismatch risk that occurs when tray and box are sourced from different suppliers. Single-supplier supply also simplifies quality, timeline, and specification management.

10ml vial plastic tray

PVC/APET

Material

PETG / HIPS

White ★

Colour

Custom colours

±0.25mm

Cavity gap

Per side

≥ 3mm

Inter-cavity

Glass proof

−80°C

PETG rated

Cold chain

1/2/5/10

Cavities

Custom count

Laser printed vial box

Laser ★

Print process

4pt min font

PCS>80%

Barcode

GS1 / QR / EAN

ΔE<2.0

Colour match

Lot-to-lot

±0.2mm

Die-cut

Auto-line ready

Custom

Design

Full OEM

48h

Quote

Both products

Supports full customization, flexible customization, and customization from samples.

1. Custom Laser Hologram Silver: Features laser hologram silver color with red and blue gradient, distinct from ordinary reflective silver.
2. Free Custom Design Service: Offers complimentary design services and custom printing options for pharmaceutical packaging.

3. High Quality Super White Material: Constructed with super white cardboard material for premium appearance and embossed letter effects.
4. Versatile Color Options: Available in laser silver, green, black, and brown colors for various packaging needs

vial tray

Send your vial OD and height, cavity count, required material (PVC / APET / PETG / HIPS), and quantity. We confirm tray dimensions and cavity clearance within 48 hours. Cold-chain PETG option for lyophilised peptides.

laser box

Send your vial dimensions, box design brief (brand name, product info, Pantone references, logo), and quantity. We supply a print proof and dimensional confirmation within 48 hours. Small minimum quantities available.

tray quote

tray specs

box quote

custom
