10r Vial
Designed specifically for sterile injectable drug packaging, biological product storage, and lyophilized powder containment in the pharmaceutical and biotechnology industry. It has a unique Type I borosilicate glass construction with precisely controlled wall thickness and superior hydrolytic resistance; it has outstanding chemical inertness, extremely high mechanical strength and thermal shock resistance, and exceptional dimensional consistency ensuring reliable hermetic sealing performance with standard 20mm butyl rubber stoppers and aluminum crimp caps throughout the entire pharmaceutical manufacturing, lyophilization, storage, and clinical administration lifecycle.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Full Customization
Description
Products Description
Designed specifically for sterile injectable drug packaging, biological product storage, and lyophilized powder containment in the pharmaceutical and biotechnology industry. It has a unique Type I borosilicate glass construction with precisely controlled wall thickness and superior hydrolytic resistance; it has outstanding chemical inertness, extremely high mechanical strength and thermal shock resistance, and exceptional dimensional consistency ensuring reliable hermetic sealing performance with standard 20mm butyl rubber stoppers and aluminum crimp caps throughout the entire pharmaceutical manufacturing, lyophilization, storage, and clinical administration lifecycle.
Products advantage
1. It does not delaminate, does not discolor, and is not affected by a wide range of pharmaceutical solvents, biological formulations, or aggressive sterilization agents.
2. It can also be used in lyophilization freeze-drying cycles, cryogenic cold chain storage, autoclave steam sterilization, and other manufacturing and storage environments with demanding temperature and chemical resistance requirements for primary packaging materials; used for containing sterile injectable drugs, lyophilized powder formulations, biological products, vaccines, and diagnostic reagents in GMP pharmaceutical filling and packaging operations.
3. Its performance meets and exceeds the most stringent requirements of USP Type I, EP 3.2.1, ISO 4802, and FDA 21 CFR international pharmaceutical glass packaging standards.
4. Widely specified and used by leading pharmaceutical manufacturers, contract development and manufacturing organizations (CDMOs), and biotechnology companies across global regulated pharmaceutical markets
sealing performance
use together with rubber stopper and flip off cap.
Packing: Inner double sterile plastic bag, outer corrugated carton
Executive Standard: ISO15378, EU GMP, CFDA
|
Butyl rubber stopper for 10r vials |
Specification |
Main size (mm) |
|||
|
The Thickness of crown |
The diameter of crown |
The diameter of neck |
The total height |
||
|
20-A |
3.3±0.2 |
18.8±0.2 |
13.2±0.1 |
8.8±0.2 |
|
|
20-B2a |
3.3±0.2 |
19.5±0.2 |
13.0±0.1 |
8.7±0.2 |
|
|
13-A |
2.0±0.2 |
12.5±0.2 |
7.5±0.1 |
7±0.2 |
|
Products parameter
|
Product name |
10R Pharmaceutical Serum Vial |
|
color |
Clear / Amber / Frosted / Gradient / Custom color spray; silk-screen printing and surface decoration etc. can be customized |
|
Specification |
SUNNY has its own factory and can provide any specifications |
| Nominal Capacity |
10ml 24*45mm, 10ml 22*50mm, 10ml 23*47mm |
|
Temperature resistant |
minus 60 degrees to 121 degrees |
|
Features |
Stable hydrolytic resistance and dimensional consistency - it will not delaminate, discolor, or lose dimensional integrity when subjected to lyophilization vacuum cycles, autoclave sterilization, or cryogenic cold chain storage conditions. Used in GMP pharmaceutical filling and packaging operations for sterile injectable drugs, lyophilized powder formulations, biological products, vaccines, and diagnostic reagents. Does not leach, crack, or deform after passing through sterilization and freeze-drying cycles. |
|
Report |
SGS, ISO, USP, EP, MSDS, technical parameters, reliability test report |
|
Specifi cation |
Max.Vol.ML |
a |
d1 OD of body |
d2 +0.2/-0.3 |
d3 max |
d4 |
h1 Total height |
h2 min |
h3 |
r1 |
r2 |
s1 |
s2 min |
t max |
Quality g |
|
2R |
4.0 ± 0.5 |
1.0 |
16.0 ± 0.15 |
13.0 |
10.5 |
7.0 |
35.0 ± 0.5 |
22.0 |
8.0 ± 0.5 |
2.5 |
1.5 |
1.0 ± 0.4 |
0.6 |
0.7 |
5.0 |
|
4R |
6.0 ± 0.5 |
1.0 |
16.0 ± 0.15 |
13.0 |
10.5 |
7.0 |
45.0 ± 0.5 |
32.0 |
8.0 ± 0.5 |
2.5 |
1.5 |
1.0 ± 0.4 |
0.6 |
0.7 |
6.1 |
|
6R |
10.0 ± 0.5 |
1.2 |
22.0 ± 0.2 |
20.0 |
16.5 |
12.6 |
40.0 ± 0.5 |
26.0 |
8.5 ± 0.5 |
3.5 |
2.0 |
1.0 ± 0.4 |
0.7 |
0.7 |
8.3 |
|
8R |
11.5 ± 0.5 |
1.2 |
22.0 ± 0.2 |
20.0 |
16.5 |
12.6 |
45.0 ± 0.5 |
31.0 |
8.5 ± 0.5 |
3.5 |
2.0 |
1.0 ± 0.4 |
0.7 |
0.7 |
9.4 |
|
10R |
13.5 ± 1.0 |
1.2 |
24.0 ± 0.2 |
20.0 |
16.5 |
12.6 |
45.0 ± 0.5 |
30.0 |
9.0 ± 0.5 |
4.0 |
2.0 |
1.0 ± 0.4 |
0.7 |
0.7 |
10.2 |
|
15R |
19.0 ± 1.0 |
1.2 |
24.0 ± 0.2 |
20.0 |
16.5 |
12.6 |
60.0 ± 0.5 |
45.0 |
9.0 ± 0.5 |
4.0 |
2.0 |
1.0 ± 0.4 |
0.7 |
0.7 |
12.8 |
|
20R |
26.0 ± 1.5 |
1.5 |
30.0 ± 0.25 |
20.0 |
17.5 |
12.6 |
55.0 ± 0.7 |
35.0 |
10.0 ± 0.5 |
5.5 |
2.5 |
1.2 ± 0.5 |
0.7 |
1.0 |
17.4 |
|
25R |
32.5 ± 1.5 |
1.5 |
30.0 ± 0.2 |
20.0 |
17.5 |
12.6 |
65.0 ± 0.7 |
45.0 |
10.0 ± 0.5 |
5.5 |
2.5 |
1.2 ± 0.5 |
0.7 |
1.0 |
20.0 |
|
30R |
37.5 ± 1.5 |
1.5 |
30.0 ± 0.2 |
20.0 |
17.5 |
12.6 |
75.0 ± 0.7 |
55.0 |
10.0 ± 0.5 |
5.5 |
2.5 |
1.2 ± 0.5 |
0.7 |
1.0 |
22.7 |
|
Coefficient of linear thermal expansion: |
4.90×10-6K-1(20～300℃) |
|
Hydrolytic resistance of the glass grain in 121℃: |
Grade 1 |
|
Hydrolytic resistance of the interior surface: |
Grade HCT1 and HCF1 |
|
Internal Stress: |
≤50nm/mm |
|
The soaking capacity of Arsenic, stibium, lead and cadmium |
As≤0.2mg/L |
|
Sb≤0.7mg/L |
|
|
Pb≤1.0mg/L |
|
|
Cd≤0.25mg/L |

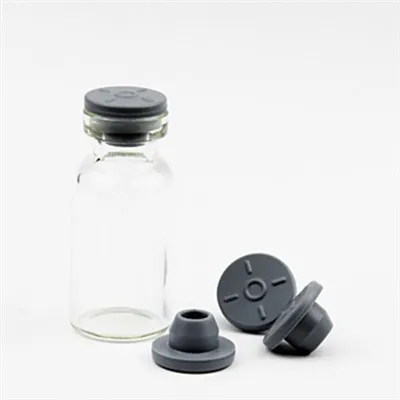

10r vials with Coated rubber stoppers
10r vials with Puncture-resistant rubber stopper
about us
Hangzhou Sunny was founded in 2008. Sunny is specialized in pharmaceutical materials. 10 years of customization experience in the 10r vial industry. The company focuses on serum vials, rubber stoppers, and special crimp caps in the powder industry for more than 10 years.The company has a number of industry application experts who are well versed in the vial specifications and requirements of multiple industries such as cosmetics and oral medical care, and can provide customized solutions for customers.
100% fully inspected to ensure worry-free quality.
The strict inspection process of incoming material inspection, patrol inspection and shipment inspection effectively ensures the quality of products.It has its own complete and advanced artificial intelligence inspection equipment and complete testing equipment.
Having cooperated with hundreds of brand customers and listed companies, we are well aware of the control of high-standard products.
