20mm silicone rubber stopper
Specification: 20-B2a
Color: Gray
Material: Bromobutyl rubber and chlorobutyl rubber
Inner Packing: Double PE packing after washing (in 100-grade clean room)
Outer Packing: Corrugated carton
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Full Customization
Description
|

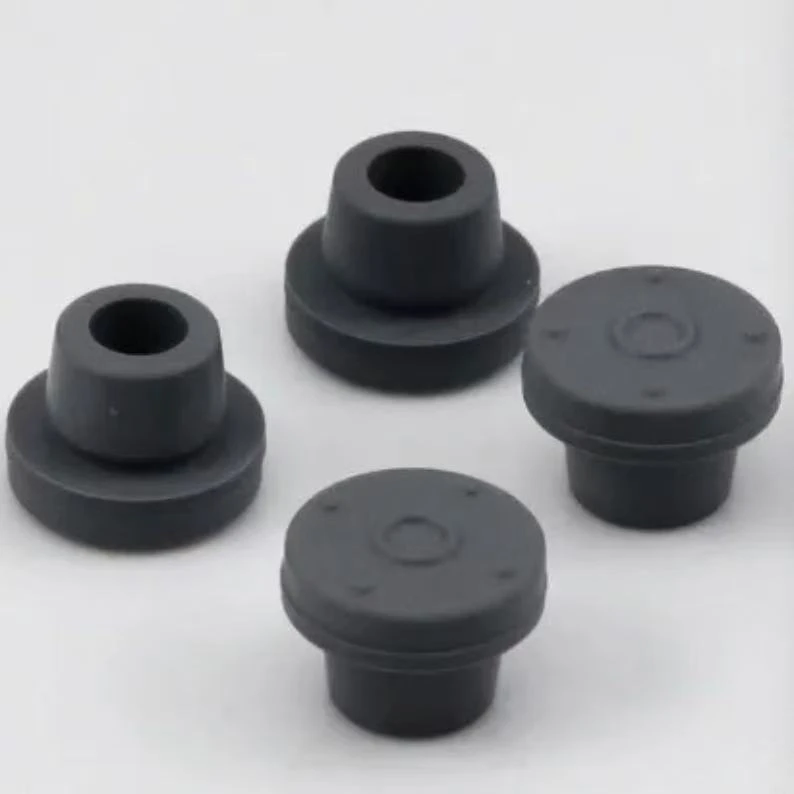

Butyl rubber stopper for injection power vial |
Specification |
Main size(mm) |
|||
|
The Thickness of crown |
The diameter of crown |
The diameter of neck |
The total height |
||
|
20-A |
3.3±0.2 |
18.8±0.2 |
13.2±0.1 |
8.8±0.2 |
|
|
20-B2a |
3.3±0.2 |
19.5±0.2 |
13.0±0.1 |
8.7±0.2 |
|
|
13-A |
2.0±0.2 |
12.5±0.2 |
7.5±0.1 |
7±0.2 |
|
Specification: 20-B2a
Color: Gray
Material: Bromobutyl rubber and chlorobutyl rubber
Inner Packing: Double PE packing after washing (in 100-grade clean room)
Outer Packing: Corrugated carton
Origin: China
Scope of application: It is suitable for package of transfusion medicines in pharmaceutical industry.
Executive standard: Adapt standards of YBB00042005
Because our company specializes in manufacturing serum stoppers, we have a unique advantage that sets us apart from other suppliers in the market. One of the primary benefits of working with us is our ability to customize the color of the stopper.

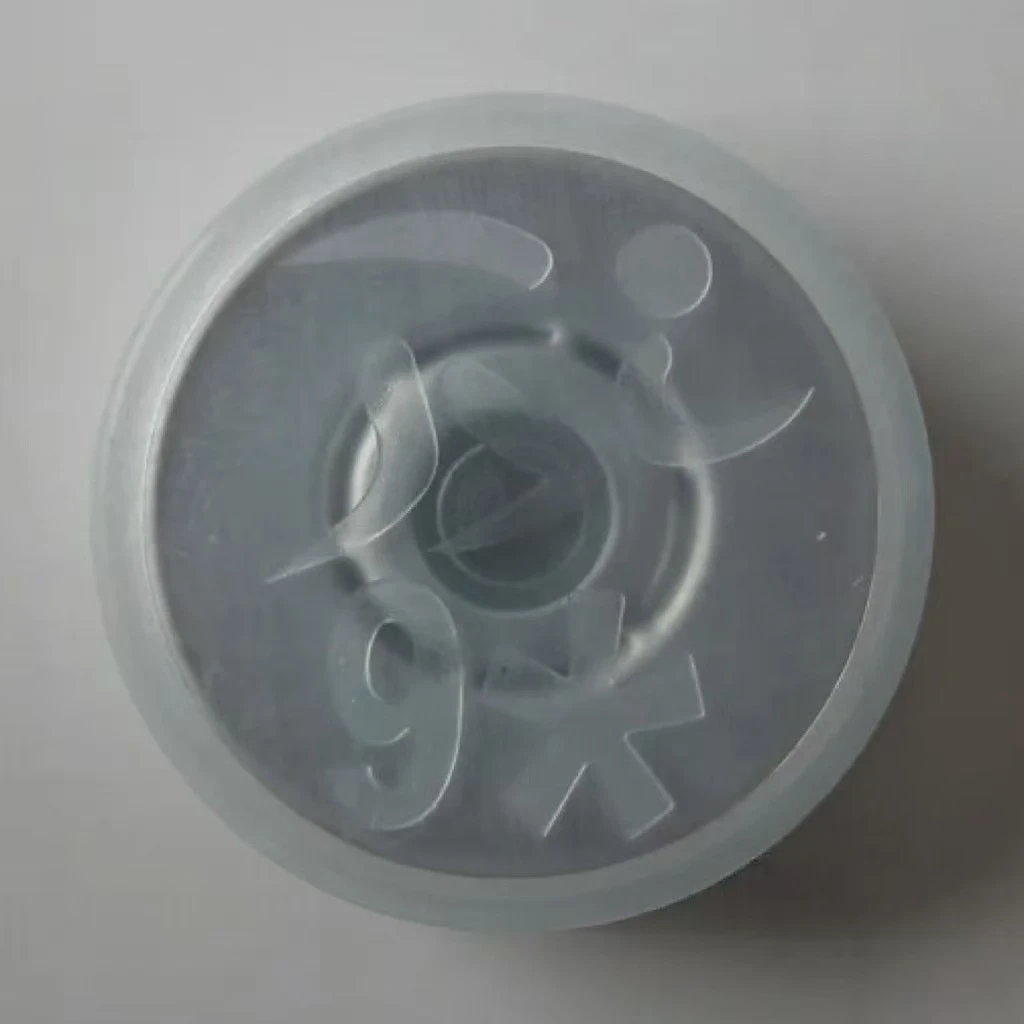

clear 20mm silicone rubber stopper

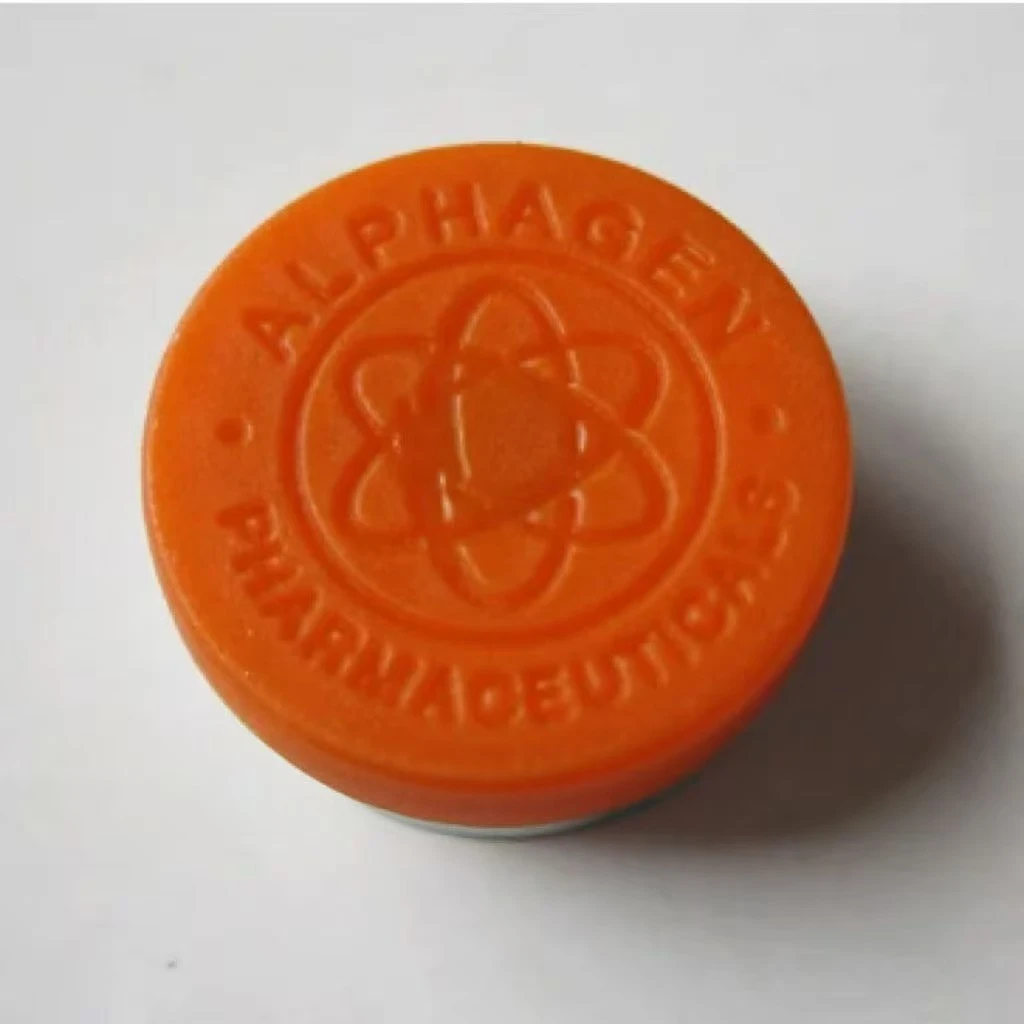

red letter sinking custom logo flip-off cap
blue color butyl stopper for bottle

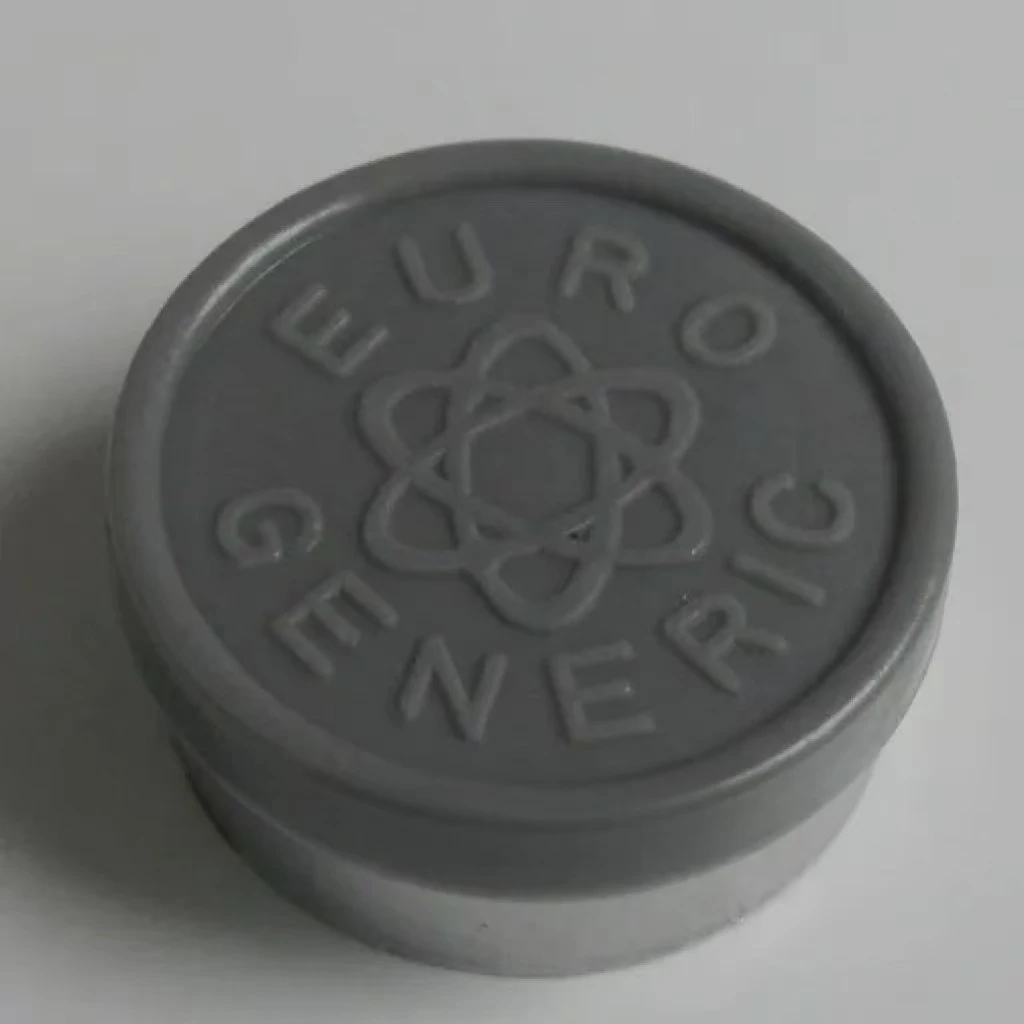

gray custom logo letters on flip-off top lids
20mm silicone rubber stopper · letter sinking custom logo · flip-off cap with own design
20mm Silicone Stopper
+ Letter Sinking Flip-Off Cap
Custom Logo Recessed into the Cap
Surface · Aluminum-Plastic Closure · Special Design
Silicone elastomer stopper · recessed/sunken logo lettering · custom flip-off closure design
|
20mm stopper size |
silicone elastomer |
letter sinking recessed logo |
flip-off opening style |
al-plastic cap composite |
own design full custom |
Silicone rubber stopper - why choose silicone over butyl
Silicone rubber is an alternative elastomer to bromobutyl for vial stoppers - offering distinct advantages in biocompatibility, thermal range, and optical clarity, with different trade-offs in gas permeability that make it suited to specific applications rather than a universal replacement.
bio
Exceptional biocompatibility
Lowest extractables of common elastomers
Medical-grade silicone (polydimethylsiloxane base) has an extremely stable, chemically inert backbone structure - silicone compounds typically show the lowest extractable/leachable substance levels of any pharmaceutical elastomer class, making it a preferred choice for highly sensitive biologic and protein-based formulations.
✓ Very low extractables/leachables profile
✓ Preferred for sensitive biologic formulations
✓ Excellent biological inertness
thermal
Wide thermal operating range
−60°C to +200°C+ typical range
Silicone rubber maintains flexibility and elastic properties across an unusually wide temperature range - from deep cold storage through high-temperature steam sterilisation and beyond - without the brittleness-at-cold or softening-at-heat failure modes that limit many other elastomers.
✓ Remains flexible at very low temperatures
✓ Withstands high-temperature sterilisation
✓ Stable across wide thermal excursions
Clarity
Optical clarity option
Translucent / clear silicone available
Silicone can be formulated in translucent or near-clear finishes, useful where visual inspection through the stopper itself (rather than just the vial glass) is part of the quality workflow, or where a premium clear-aesthetic presentation is desired.
✓ Translucent/clear formulation available
✓ Supports visual inspection through stopper
✓ Premium clear presentation option
Silicone vs bromobutyl - the trade-off to know
Silicone has significantly higher gas and water vapour permeability than bromobutyl rubber - meaning it is not the right choice for oxygen-sensitive or moisture-sensitive formulations requiring a strong barrier. Silicone's advantages (biocompatibility, thermal range, clarity) are best applied where barrier performance is not the primary requirement, or where it is combined with other packaging barrier layers (e.g. an overwrap or barrier outer pack). Confirm your formulation's permeability sensitivity before selecting elastomer type

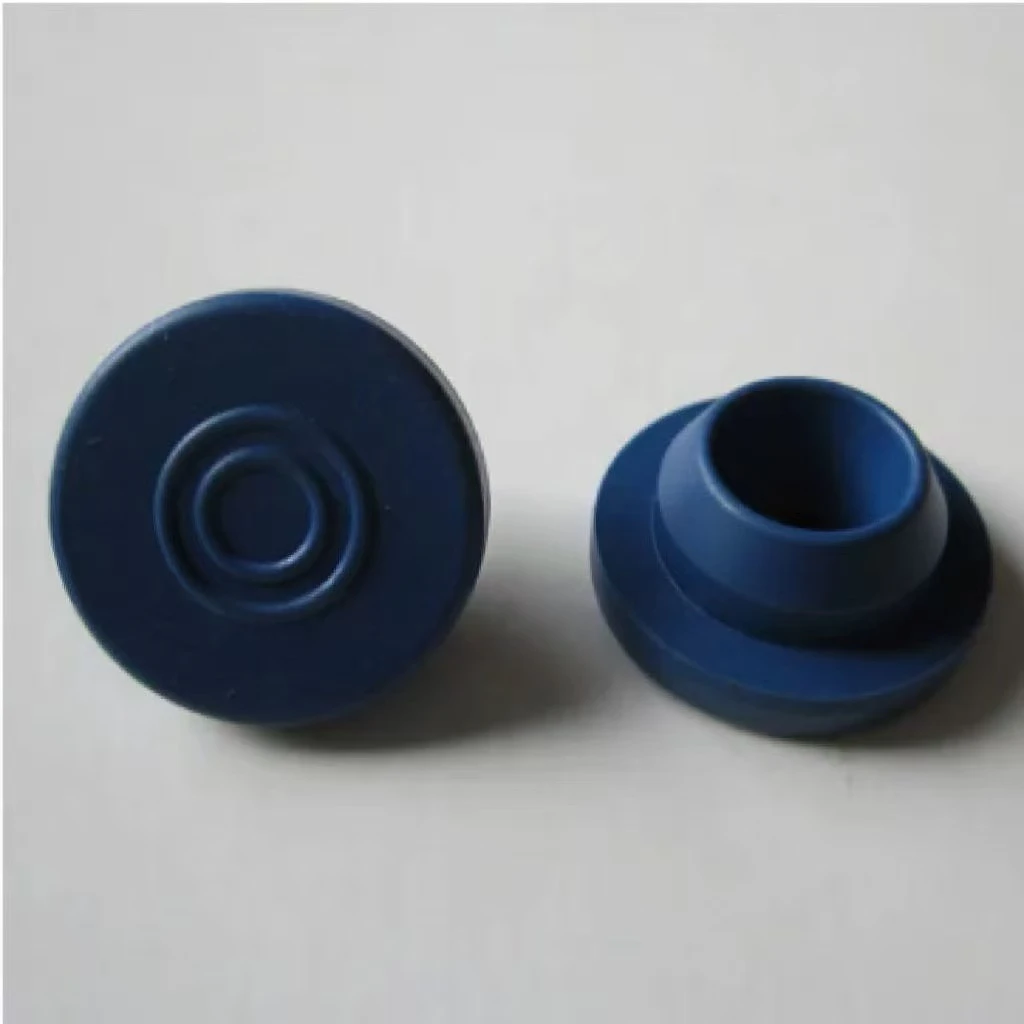

1. 20mm blue color rubber stopper butyl stopper with one circle on the top can use for stopper glass serum bottle 20ml, 10ml, 7ml ect. With 20mm opening

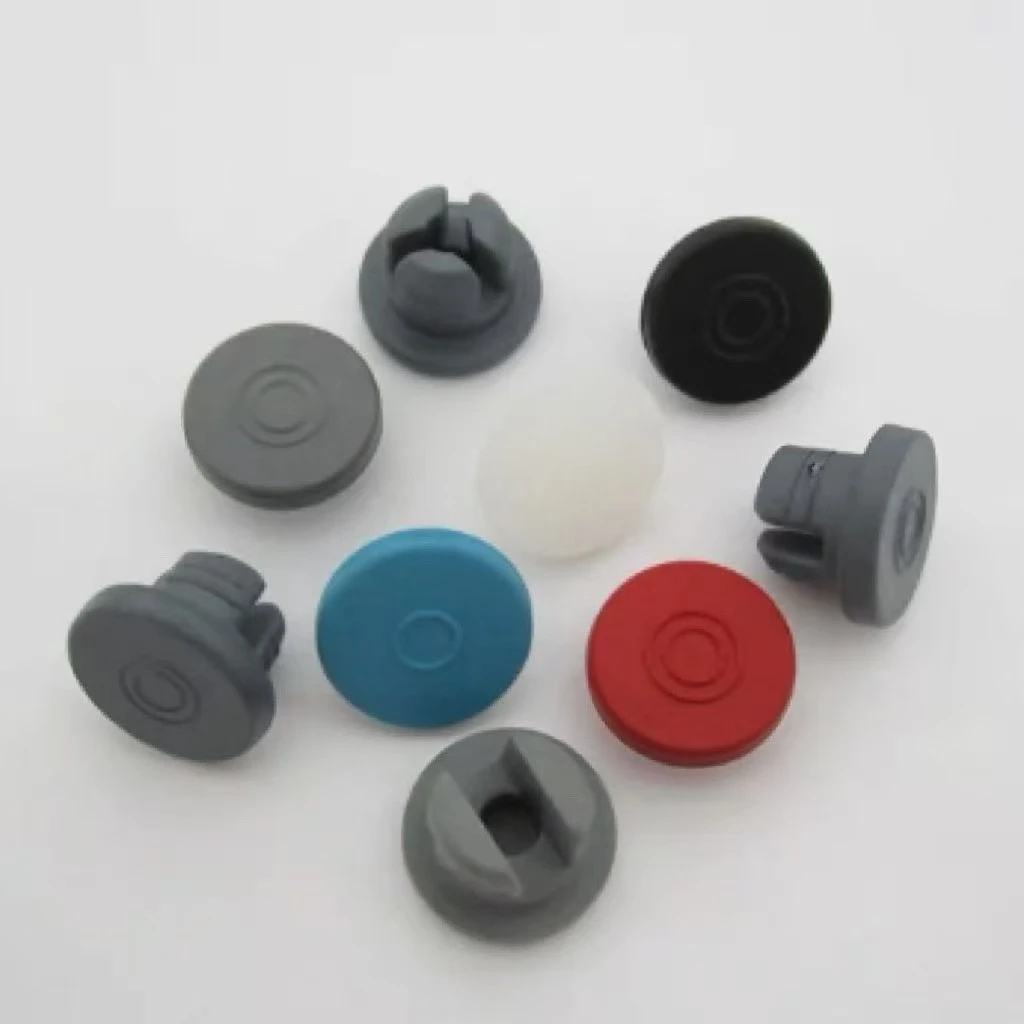

2. Custom color rubber stopper can be made as customers' need, such as red, yellow, black, green...

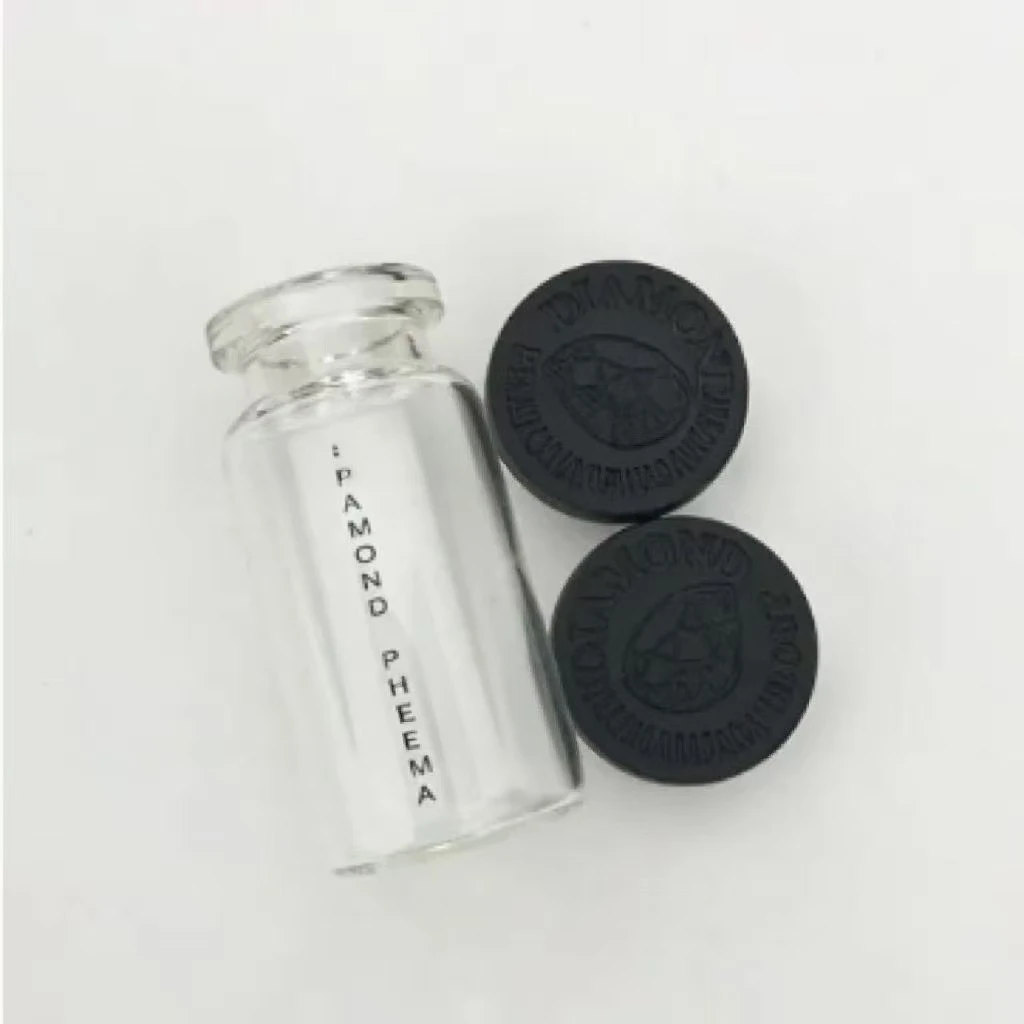

3. We can make special logo embossed on the top, help to make the custom glass vial kits with logo printing vial and custom logo caps.
specifications
· Size: 20mm
· Color: Blue
· Material: Butyl rubber
· Service: Custom logo/words can be printed or not
20mm butyl stopper, rubber stopper blue, 20mm vial blue stopper, 10ml vial stopper, custom color butyl rubber stopper
customization from samples
full customization
flexible customization
Letter sinking - custom recessed logo design
Letter sinking on the flip-off top - logo pressed into the surface
"Letter sinking" describes a custom flip-off cap surface treatment where your logo, brand name, or symbol is pressed downward into the cap material - creating a recessed (sunken) profile rather than a raised one. The letters sit below the surrounding flat surface, visible through the shadow line their depth creates and through colour contrast if the recess is filled or printed.
1
al-plastic
Aluminum-plastic composite cap
Plastic top disc + aluminum skirt
For aluminum-plastic composite flip-off caps, the letter sinking is formed in the plastic top disc component - combining the tamper-evident aluminum tear skirt with a custom-moulded plastic top carrying your sunken logo design.
2
Letter Sinking ★
Recessed into the surface
Pressed down · subtle shadow definition
The letter or logo cavity is moulded into the cap so the design sits below the flat reference surface. Light catches the recessed edge, creating a soft shadow that defines the shape - a subtler, more understated branding effect than raised embossing, often associated with a premium minimalist aesthetic.
3
embossing
Raised above the surface
Pressed up · stronger highlight/shadow
For comparison: embossing raises the design above the flat surface, producing a stronger highlight-and-shadow contrast that reads as more prominent and tactile at a glance. Both techniques are mechanically formed (not printed) and equally permanent - the choice is primarily aesthetic, based on the brand impression you want to create.
4
plastic top
Letter sinking on plastic flip-off top
Moulded recess · plastic flip-off cap
For plastic flip-off caps, letter sinking is formed directly in the injection mould tool - the cavity for your logo is cut into the mould, so every cap produced has the recessed design moulded in from the start. Sharp detail and consistent depth across the full production run.
5
full custom
Flip-off cap with your own design
Special design · any symbol or wordmark
Beyond standard text, any custom symbol, brand mark, or special design element can be formed as a sunken (or raised) feature on the flip-off top - subject to mould tooling feasibility review for very fine detail at the cap's working size

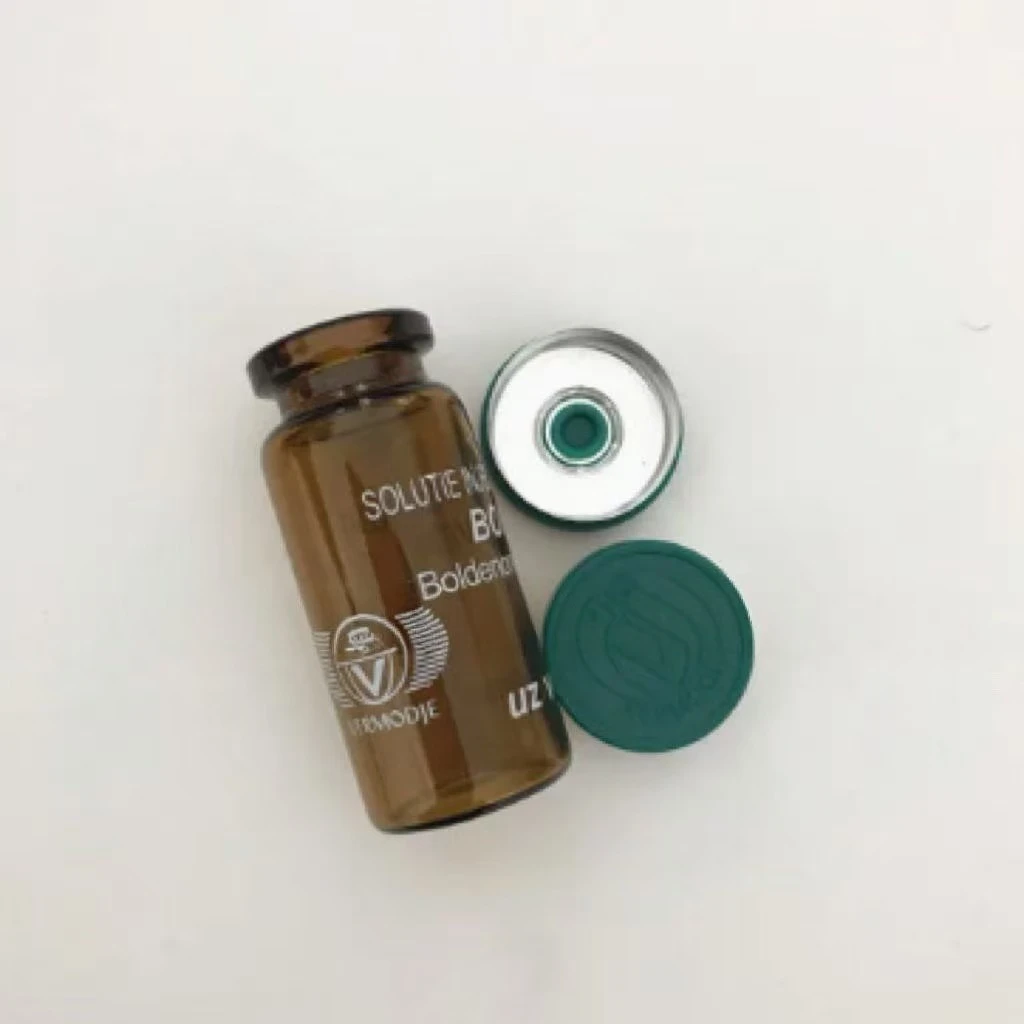

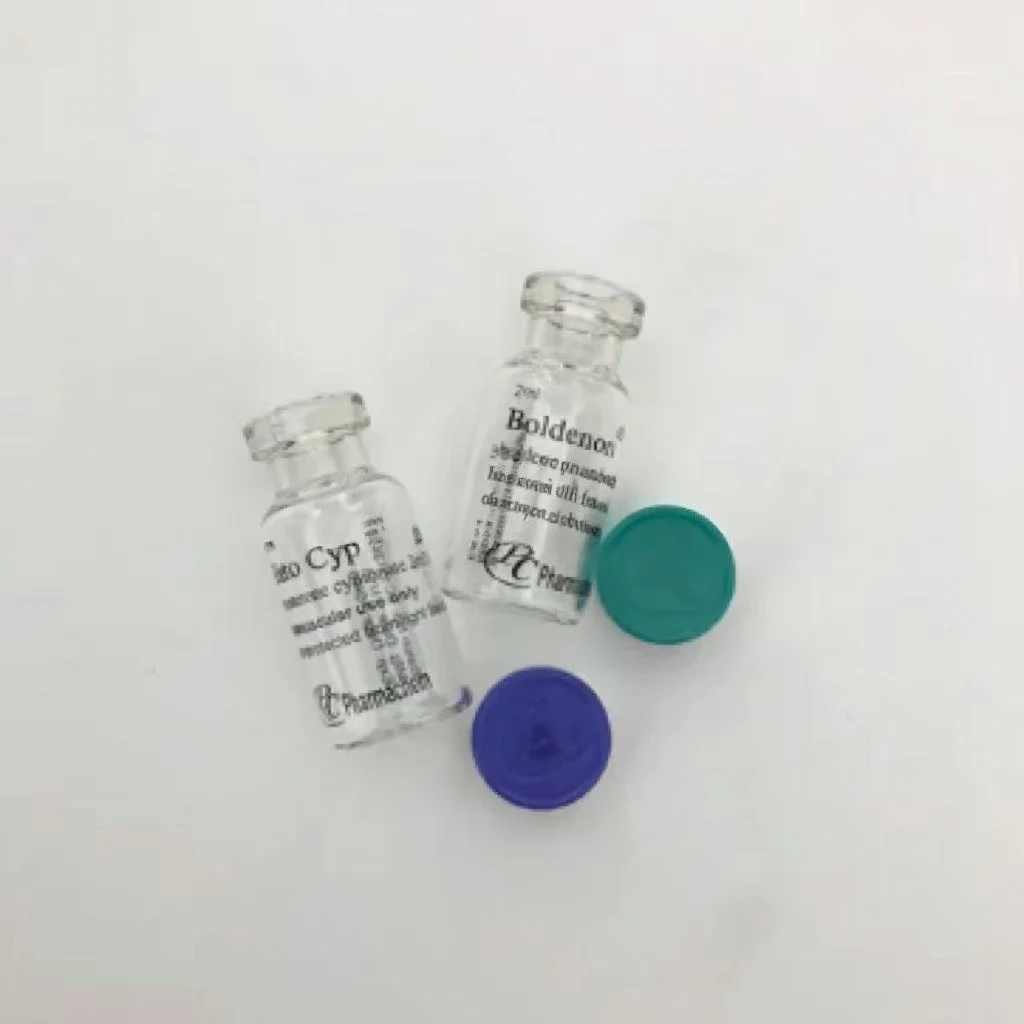

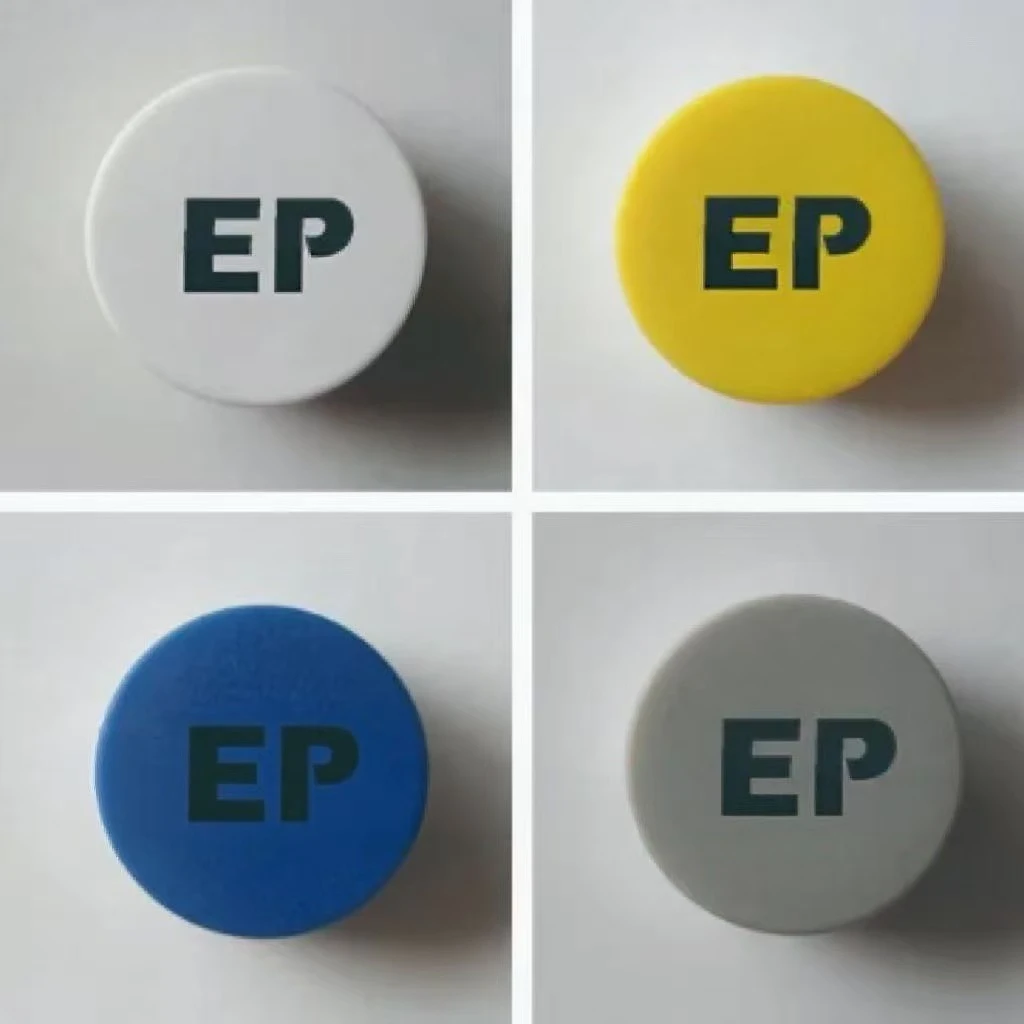

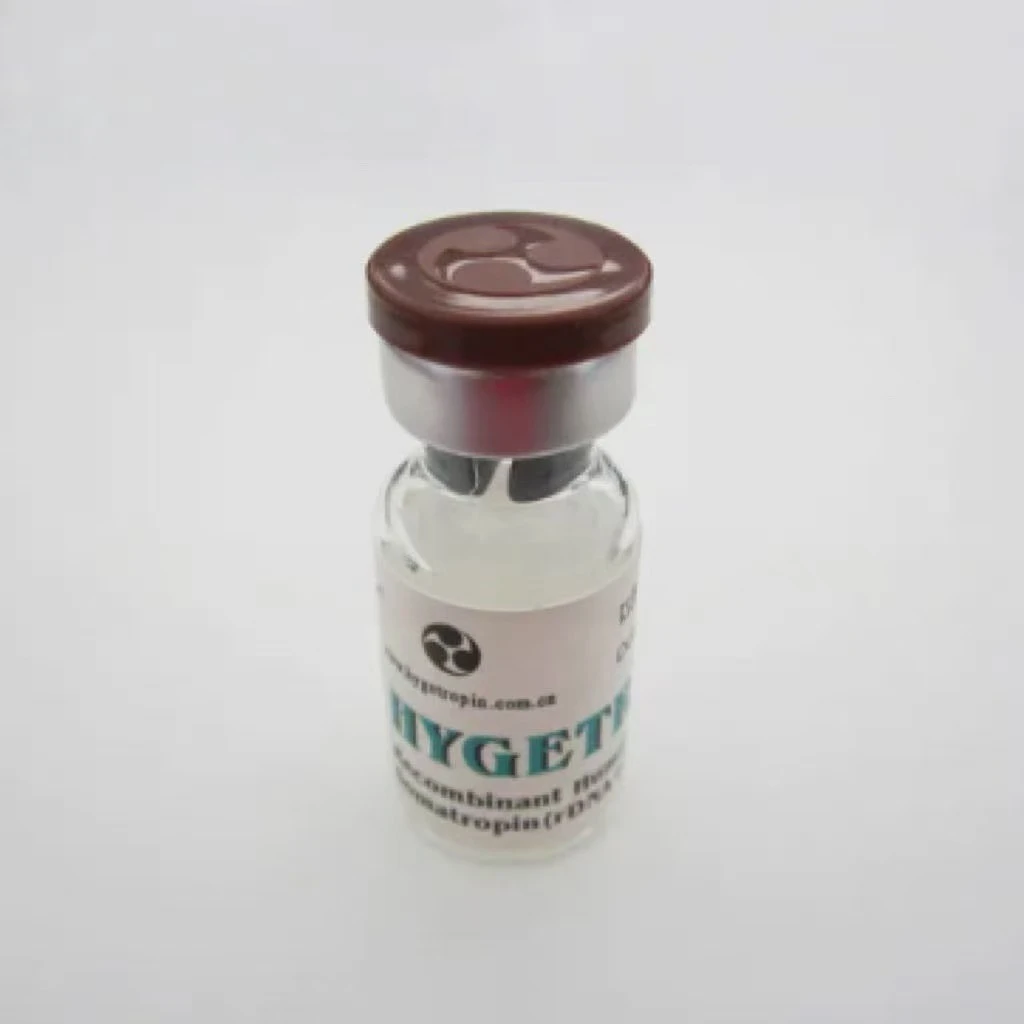

1. Custom logo words letters and image sinking on the flip-off cap's plastic top.
2. Flip-off caps for glass vial crimp top, aluminum seal high quality can be sealed by vial crimper.
3. Custom design flip-off cap or custom design glass vial kits supplied, printing box, printing labels, glass vials with printing.
specification
· Size: 20mm
· Color: Grey
· Material: Plastic and aluminum
· Service: Custom logo/words can be printed or not
· Color choose: Any color according Pantone color numbers
customize special design flip-off cap
Custom logo cap, letter sinking on tops, aluminum-plastic custom logo cap, flip-off cap with own design, flip-off seal aluminum cap, special design customize flip-off lid, flip-off closure
20mm silicone stopper & custom flip-off cap - full specification reference
Reference specifications for the 20mm silicone rubber stopper and custom letter-sinking flip-off cap closure combination.
| Parameter | Silicone rubber stopper | Flip-off cap (custom design) |
|---|---|---|
| Material specification | ||
| Elastomer base | Medical-grade silicone ★ | - |
| Size | 20mm | 20mm |
| Thermal range | −60°C to +200°C+ typical | - |
| Optical option | Translucent / clear available | - |
| Cap design & customisation | ||
| Cap construction | - | Plastic or aluminum-plastic composite |
| Logo treatment | - | Letter sinking (recessed) ★ or embossed |
| Opening style | - | Flip-off |
| Custom design | - | Full own design - text, symbol, logo |
| Compatibility & ordering | ||
| Combination | Supplied with matching 20mm cap | Supplied with matching 20mm stopper |
| Sample available | Yes - request free sample | Yes - design proof + sample before tooling |
| Minimum order | Confirm at enquiry | Confirm at enquiry - mould tooling cost applies |
who orders this closure
20mm silicone stopper & custom flip-off caps - across the pharmaceutical supply chain
The 20mm silicone stopper and letter-sinking custom flip-off cap combination is specified wherever biocompatibility and brand-specific closure design are both priorities.
Biologics & biosimilar producers
Low extractables · sensitive formulations
Biologics producers requiring the very low extractables profile of medical-grade silicone for sensitive protein-based formulations, where bromobutyl's barrier advantage is not the priority requirement.
Premium peptide brands
Custom flip-off design · brand identity
Peptide brands wanting a distinctive, brand-specific closure with their own logo letter-sunk into the flip-off top - distinguishing their product from generic stock caps at a glance.
Aesthetic clinics
Special design · patient-facing brand
Aesthetic medicine clinics wanting a recognisable, branded closure design across their dispensed products - using letter-sinking for a subtle, premium finish that patients notice.
CDMOs & fill-finish
Multi-brand · custom closures per client
Contract fill-finish organisations producing custom-branded closures for multiple client products - sourcing letter-sinking flip-off caps to match each client's own design requirement.
Biotech & clinical supply
Silicone biocompatibility documentation
Biotech clinical supply teams requiring silicone stopper biocompatibility data and thermal range documentation for investigational product packaging submissions.
Packaging component distributors
B2B · custom design service
Pharmaceutical component distributors offering custom flip-off cap design services alongside standard silicone and bromobutyl stopper stock for downstream customers.
Silicone Stopper. Your Logo, Sunk In.
A closure that's recognisably yours.
Request a free sample of the 20mm silicone rubber stopper, or send your logo artwork for a custom letter-sinking flip-off cap sample. We confirm mould feasibility and supply a design proof within 48 hours.
Shipment: Door To Door
By express, such as TNT, DHL, UPS, FedEx for small quantity
By air or by sea for large quantity.
Or ship according to your request.
Order:
if you are interested in any our products (injection vials,rubber stoppers, flip top caps and so on)
It will be our honor and very pleasure to receive your inquiry, we will try our best to meet your need.
Hot Tags: 20mm silicone rubber stopper, China 20mm silicone rubber stopper manufacturers, suppliers, Rubber Stopper for Liquid Powder Vial, Vial Rubber Stoppers, 20mm Butyl Vial Rubber Stopper, Blue Butyl Vial Rubber Stopper Septum 20mm, Glass Vial with Cap Rubber Stopper, 13mm 20mm Coated Bromobutyl Vial Rubber Stopper
