Small injection vial cap

2ml · 3ml · 5ml vials

✓ For small-format injection vials (2ml–5ml)

✓ Peptide, hormone, allergen injectables

✓ Single-dose small-volume applications

Standard injection vial cap

5ml · 10ml · 20ml vials

✓ For standard pharmaceutical injection vials

✓ Antibiotics, biologics, hormones

✓ Most common pharmaceutical cap size globally

Infusion bottle cap ★

100ml · 250ml · 500ml · 1000ml

✓ For glass infusion bottles (IV fluids, LVP) ★

✓ Multi-dose antibiotic and vaccine vials

✓ Large-format injectables and infusion solutions

✓ Largest standard pharmaceutical crimp cap size

Secure tamper-evident seal for high-volume infusion containers

Tamper evidence · large format · infusion bottle

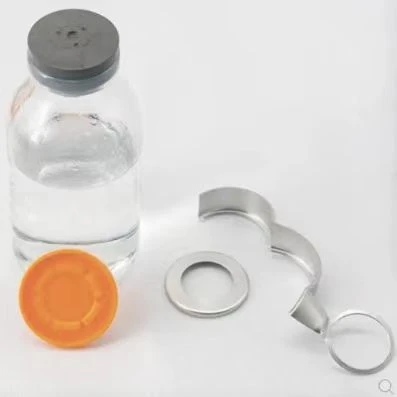

IV infusion bottles are administered directly into the patient's bloodstream - the tamper-evident integrity of the bottle seal is a critical patient safety requirement. The 32mm flip off cap provides the standard aluminium crimp tamper evidence for glass infusion bottles: the continuous aluminium skirt crimped under the bottle neck flange creates a seal that cannot be broken without visible evidence of tampering. The flip tab, once removed, cannot be replaced - and the aluminium skirt, once crimped, cannot be uncrimped without destruction of the cap. These tamper-evidence properties are unchanged at the 32mm scale and meet the same pharmaceutical packaging standards as the smaller formats.

✓ Aluminium skirt crimped - irreversible tamper evidence

✓ Flip tab removal is visible and non-reversible

✓ Critical for IV fluid patient safety ★

✓ Consistent with pharmacopoeial tamper-evidence requirements

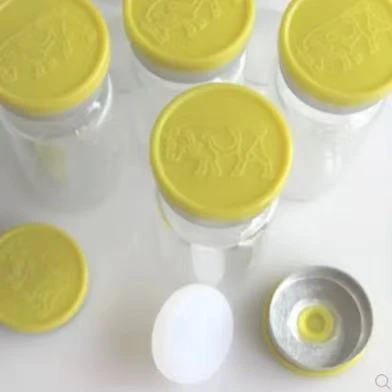

Large PP tab surface for product identification and printing

Larger tab area · printing · embossing · identification

One of the practical advantages of the 32mm cap over smaller sizes is the substantially larger PP flip tab surface area - the central blue, red, green, or other coloured PP disc on a 32mm cap is nearly three times the surface area of the equivalent disc on a 20mm cap, and approximately six times that of the 13mm cap. This larger surface provides more space for printed text, embossed product identifiers, or debossed lot number information on the cap top - a practical benefit for high-volume IV fluid manufacturing where the cap surface is often used to carry supplementary product identification in addition to the bottle label, and where the large cap must be legible to a healthcare worker inserting an IV spike under time pressure.

✓ Large PP disc - 3× area of 20mm, 6× area of 13mm

✓ Printing and embossing possible on the wider tab surface

✓ Colour instantly visible from above on storage shelf

✓ Easier to grip for healthcare workers under time pressure

Consistent crimping performance on large-format filling lines

32mm crimping die · inline capping · automated lines

Large-volume IV fluid manufacturing is typically a high-speed, fully automated operation - glass infusion bottles are filled, stoppered, and capped on continuous rotary filling lines running at hundreds of bottles per minute. The 32mm flip off cap must perform reliably on these automated lines - the cap must feed consistently from the cap supply hopper, orient correctly at the capping station, and crimp evenly and securely around the 32mm bottle neck with the correct crimp torque on every bottle. Our 32mm caps are dimensionally consistent within tight tolerances specifically to support automated capping line performance - the cap diameter, skirt depth, and aluminium gauge are controlled to ensure reliable automated application.

✓ Consistent cap-to-cap dimensions for automated line feed

✓ Controlled Al gauge - uniform crimp torque per bottle

✓ Compatible with standard 32mm rotary crimping equipment

✓ Tight dimensional tolerances for high-speed capping lines
